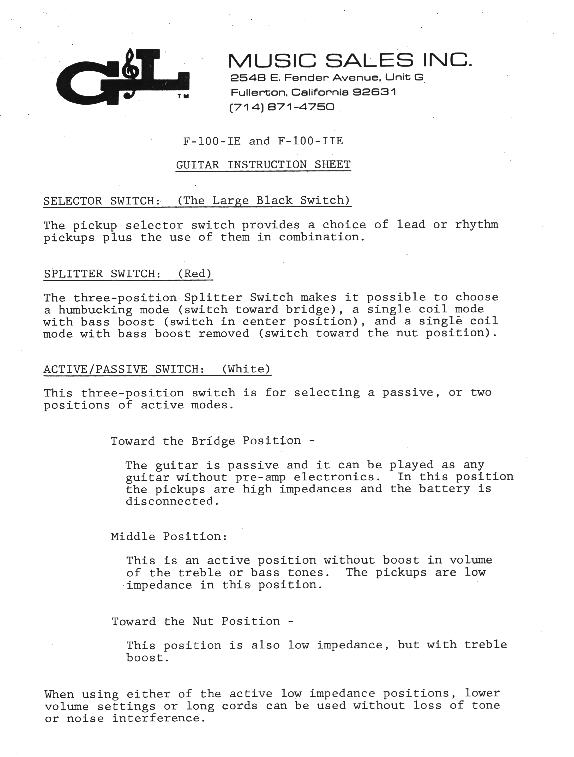

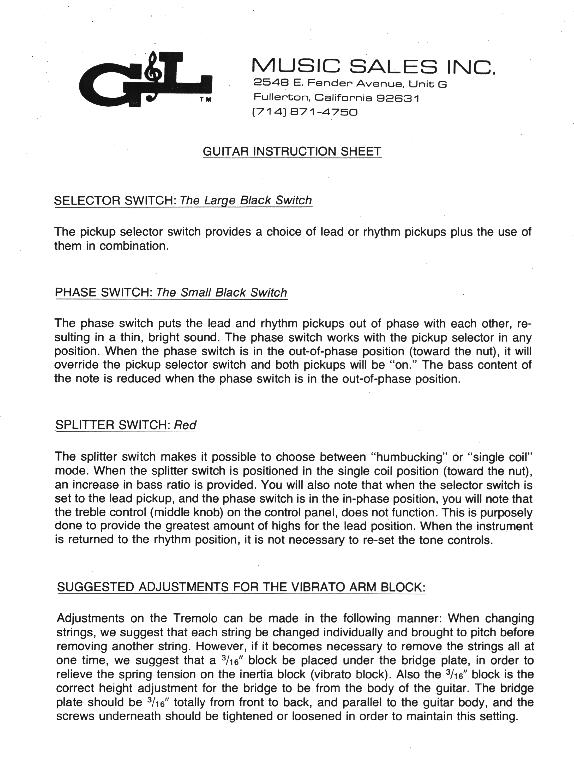

1983 F-100 Instruction Sheets

Post by Craig »

Found in the guitarsbyleo.com Manual_Schematics Album in the Gallery:


--Craig [co-webmaster of guitarsbyleo.com, since Oct. 16, 2000]
